O-SMD series with automatic brightness adjustment and wider viewing angle provides clear image even in bright outdoor environment.

Product features

  • Ultimate visual performance, wide viewing angle to 140/120 (H/V) to reach more audience, high gray scale to show soft colour effect.
  • Bright and clear pictures with high contrast ratio of 6000:1.
  • Better colour uniformity and color mixing effect owing to SMD LED technology.
  • With cabinet IP65 and module IP68, the display screen is certified to be used in all weather conditions. The product is very suitable for Outdoor digital Hoardings.
  • Front maintenance modules are also available. Cabinets are also available with front service and maintenance possibility.

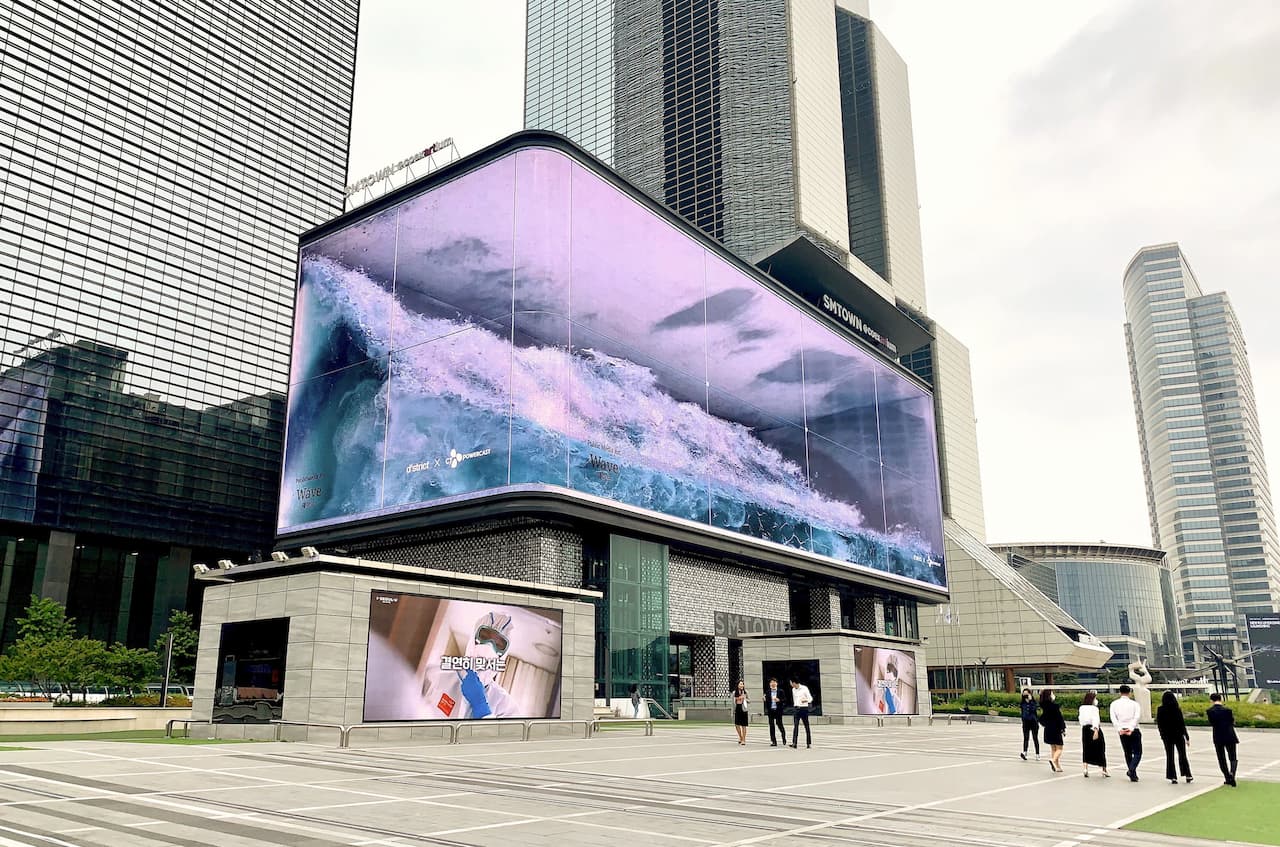

  • Flexible outdoor modules are also available so we can go for Curved LED screen suiting our creative requirement.
  • Fan-less design to create quiet working condition. Slim profile and light weight makes it compatible with static billboard.

Application Scenarios

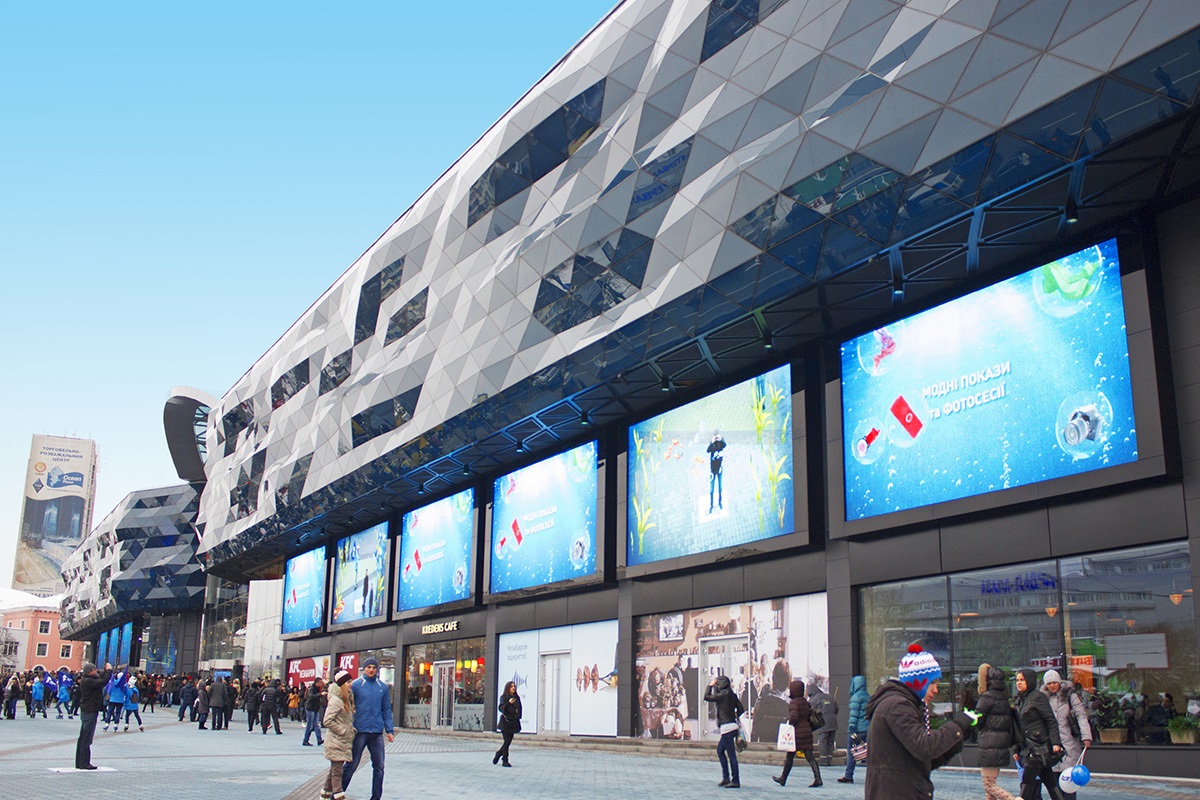

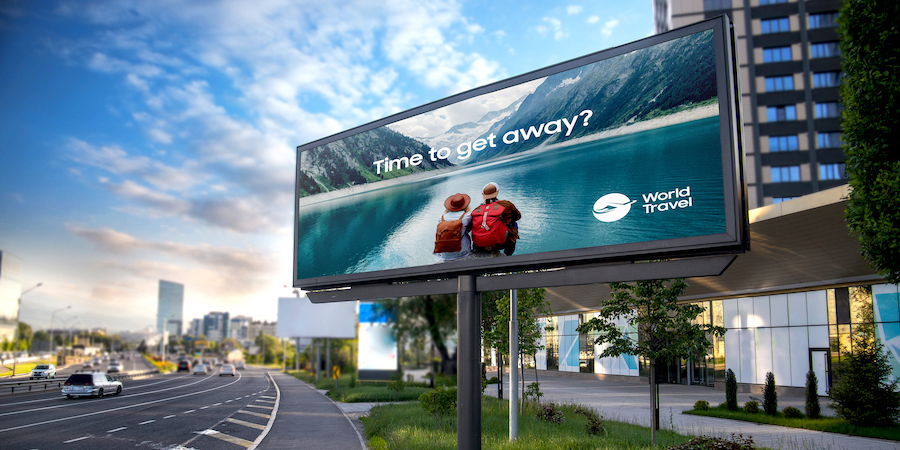

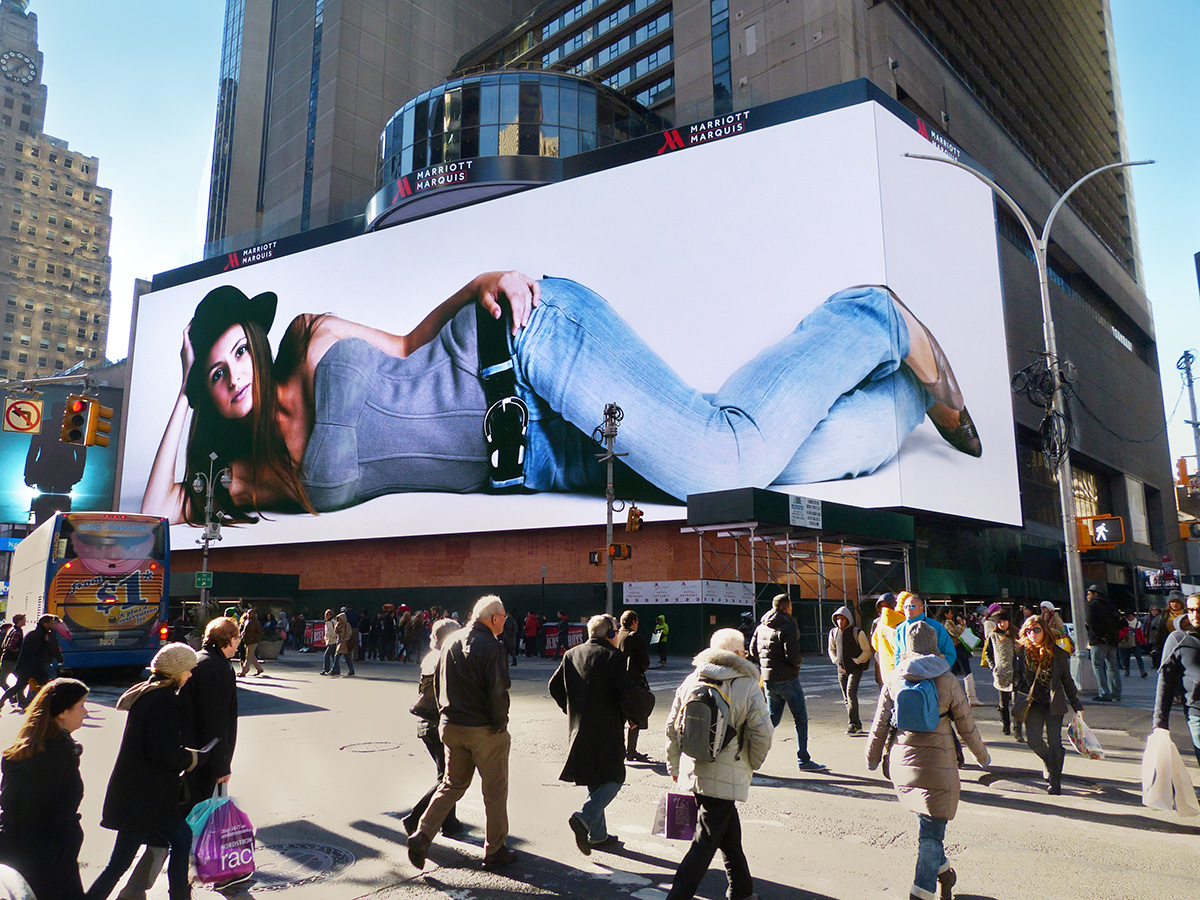

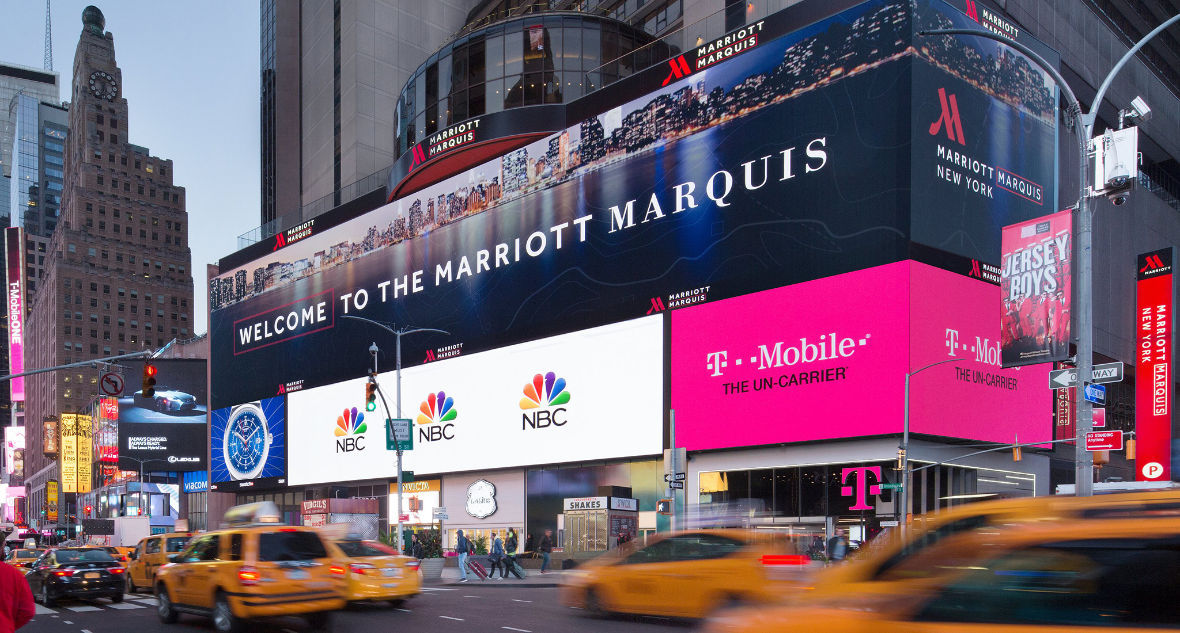

Urban Centers, Outdoor buildings, Railway Station, Bus Stations, Highways, Large Shopping malls, Large building façade, Digital billboards.

SPECIFICATIONS
Model O-SMD 3 O-SMD 4 O-SMD 6
LED Type SMD1415 SMD1921 SMD2727
Pixel Pitch 3.076mm 4mm 6mm
Module Resolution（W×H） 104 X 52=5408 Pixels 80X40=3200 Pixels 32X32=1024 Pixels
HUB HUB75 HUB75 HUB75
Module Dimension 320mm×160mm×18.4mm 320mm×160mm×18mm 192mm×192mm×18mm
Module Weight 0.43±0.02kg 0.49±0.02kg 0.35±0.02kg
Single-dot Brightness Calibration Support Support Support
White Balance Brightness ≥4500 CD/m2 5000~5500 CD/m2 4500~5000 CD/m2
Standard Color Temperature 6500K (1000K～9500K Adjustable ) 6500K ( 1000K～9500K Adjustable ) 6500K ( 1000K～9500K Adjustable )
Beam Angle（Hor/Ver°） 140° /140° 140°/140° 140°/140°
Contrast Ratio 3000 : 1 5000 : 1 5000 : 1
Input Power <Max> 879 W/m2 879W/m2 895W/m2
Input Power <Typical> 293W/m2 293W/m2 298W/m2
Power Voltage AC90～132V/ AC186～264V，
Frequency 47~63（Hz）		 AC90～132V/ AC186～264V，
Frequency 47-63（Hz）		 AC90～132V/ AC186～264V，
Frequency 47-63（Hz）
Frame Changing Frequency ≥60Hz 60Hz 60Hz
Refresh Rate ≥1920Hz 1920Hz 1920Hz
Processing Depth 12~14 Bit 12~14 Bit 12~14 Bit
Video Support 2K HD, 4K UHD 2K HD, 4K UHD 2K HD, 4K UHD
Life Typical Value (HRS) 50000H 100000H 100000H
Working Temperature/ Humidity Range
(℃/RH）		   -20℃~50℃ / 10%~80%RH
( No Condensation )		 -20℃~50℃ / 10%~80%RH
( No Condensation )
