Chip on board (COB) is the latest innovation in the field of LED technology. It is a method of directly mounting red, green and blue chips onto a printed circuit board (PCB). As COB technology involves bonding the components to PCB using an adhesive, so it is more robust and reliable connection. This makes it less susceptible to failure due to external factors and soldering issues.
Let’s explore the other benefits of COB over SMD/ DIP products
Application Scenarios

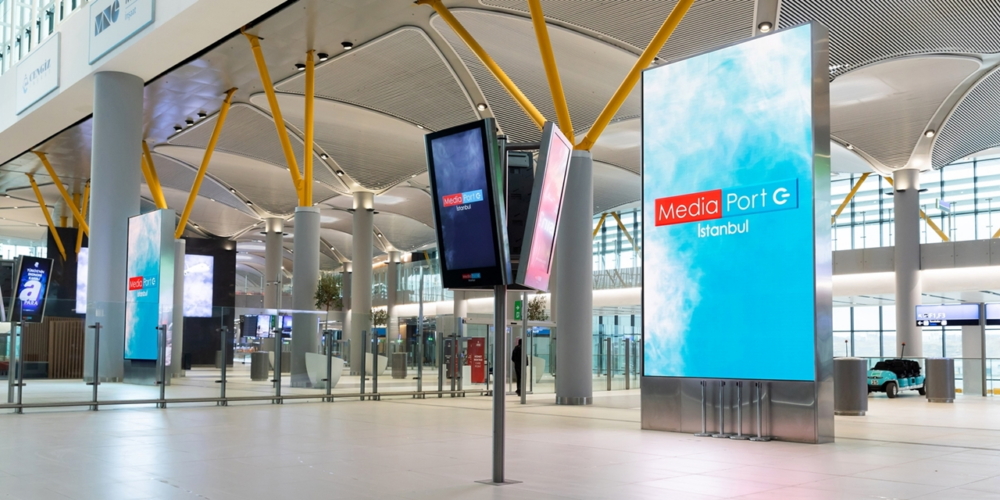

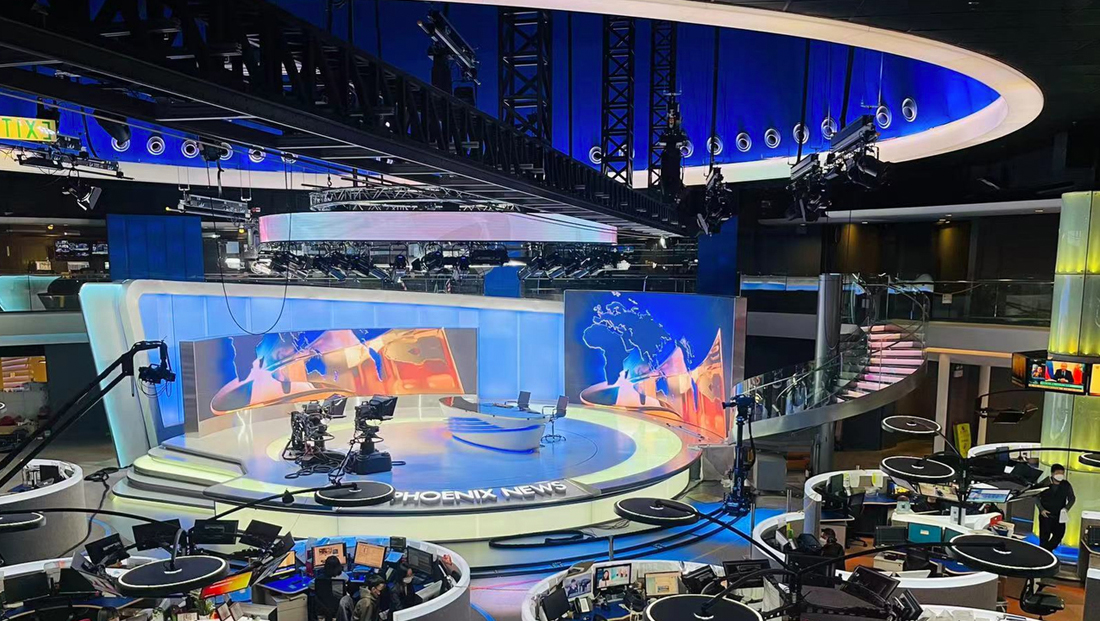

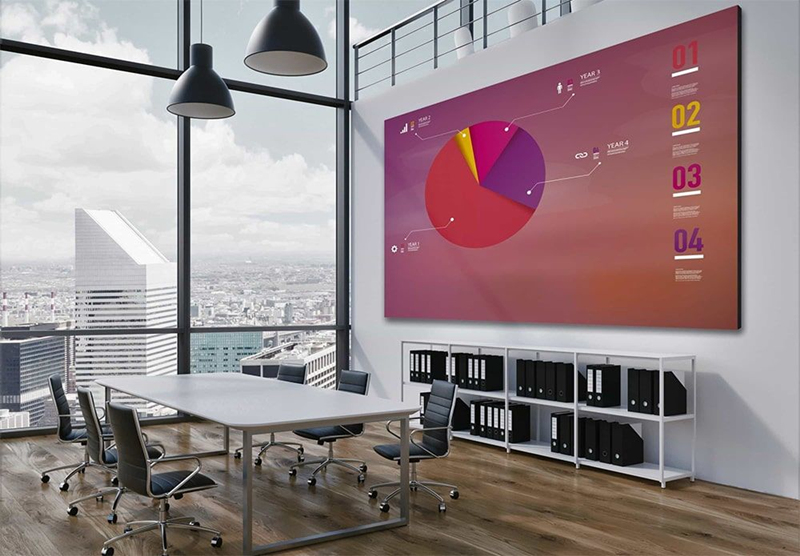

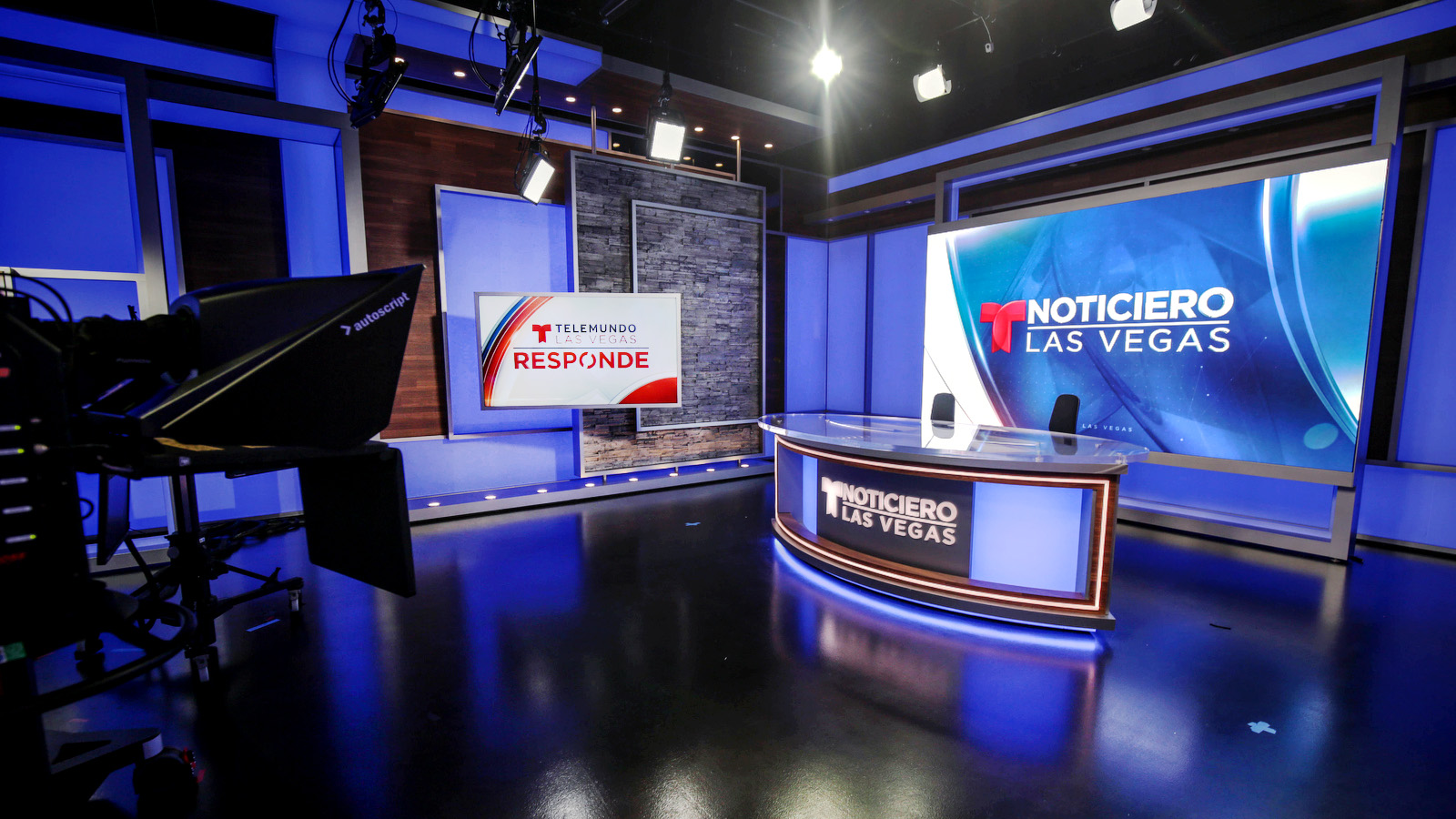

Monitoring center, Conference room, Audio- Visual center, Product Show room, Exhibition hall, Brand Chain store, Commercial center, Broadcasting center, Cinema.
SPECIFICATIONS
| Model | COB 0.93 | COB 1.25 | COB 1.56 |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5625 |
| Module Resolution (dot | 160x120 | 120x90 | 96x108 |
| Module Size(mm) | 150x112.5 | 150x112.5 | 150x168.75 |
| Module Layout(pcs) | 4x3 | 4x3 | 4x2 |
| Cabinet Size(mm) | 600x337.5x46 | 600x337.5x46 | 600x337.5x41 |
| Pixel Density(dots/m2) | 11,27,777 | 6,40,000 | 4,09,600 |
| Seam (mm) | 0.15 | 0.15 | 0.15 |
| Maintenance | Front | Front | Front |
| Brightness(nits) | 1000(peak)500(Typ.) | 800(peak)500(Typ.) | 800(peak)500 (Typ.) |
| Brightness Uniformity | 97% | 97% | 97% |
| Dark Contrast | 1000000:1 | 1000000:1 | 1000000:1 |
| Color Gamut | NTSC 110% | NTSC 110% | NTSC 110% |
| Refresh rate(Hz) | 3840 | 3840 | 3840 |
| Max Power(W/m2 at 500 nits) | 320 | 310 | 230 |
| Gray Scale(bit) | 12-16 | ||
| Input Voltage | AC100-240V/50-60Hz | ||
| Working Temperature | -20℃~60℃ | ||
| Life Span | 100,000 hours | ||
| Mtbf | >100,000 hours | ||
| Certification | CE, ETL, FCC, ROHS | ||
