Multiple Configurations

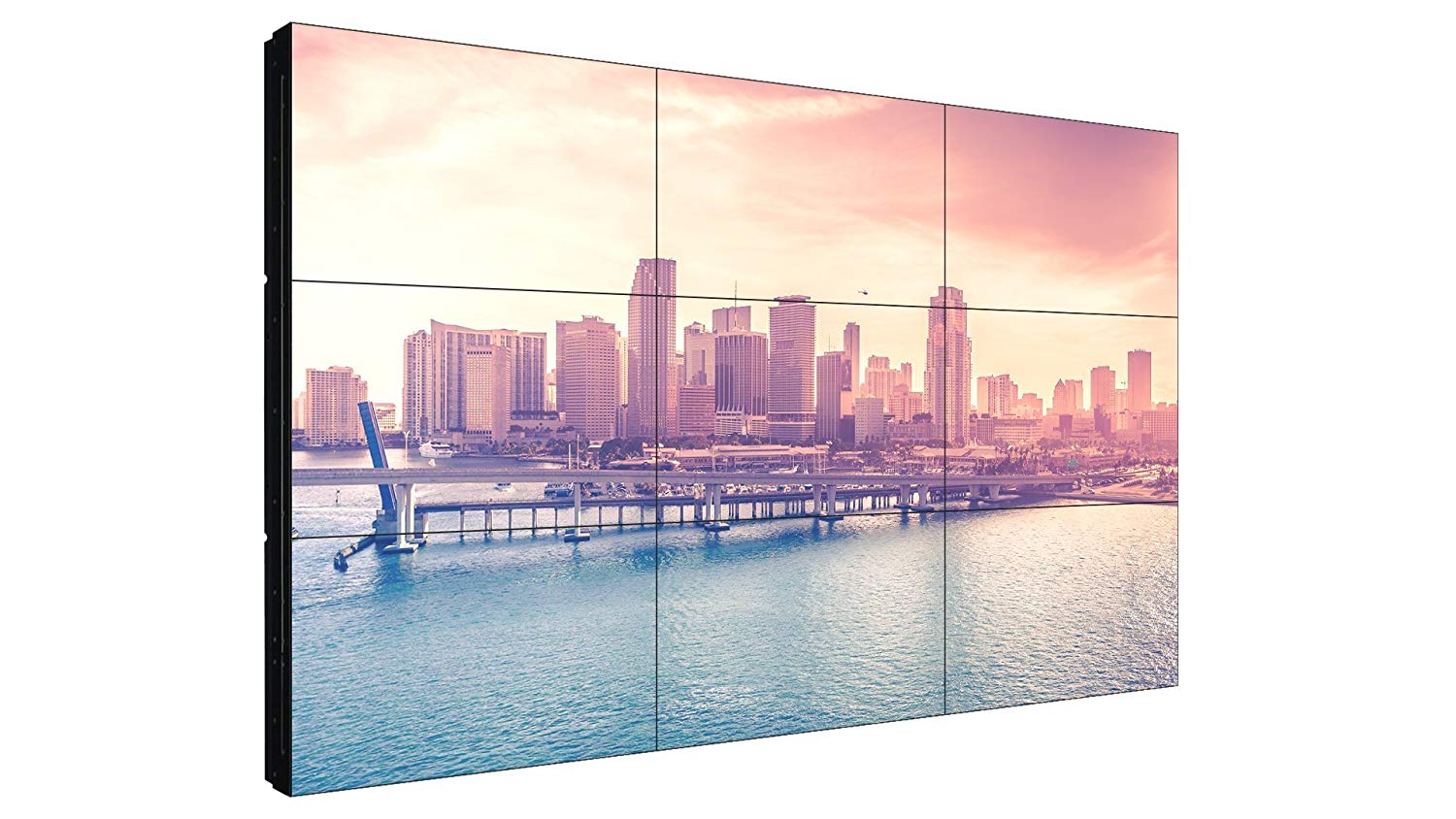

These displays can be used to create Video Walls of any configuration, for example 2x2, 3x3, 1x4, 5x3 etc. The Video wall panels can be used in either Portrait & Landscape orientation, depending on your requirement. Virtually seamless appearance with a bezel of just 1.8mm between two panels.
Superior Image quality
Superior Image quality and colour depth at 178 degree ultra-wide viewing angle in both landscape and portrait orientation with no blackening effect.
Connectivity
You can run the Video Wall display from your PC / laptop or Media Player as they have a powerful interface that supports a wide range of audio & visual inputs such as HDMI, VGA, DVI, etc.
Automatic Tiling
With HDMI Splitter and HDMI Matrix, no additional hardware is required to get your Video wall display playing in any configuration.
Environmentally Power Timer
Allows for a reduced power usage in those hours that the displays are not required. Set daily or weekly on/off times for your displays.
Advanced Temperature Control
Each panel has an advanced temperature control system which allows it to keep running at the optimum temperature for longer duration.
Application Scenarios

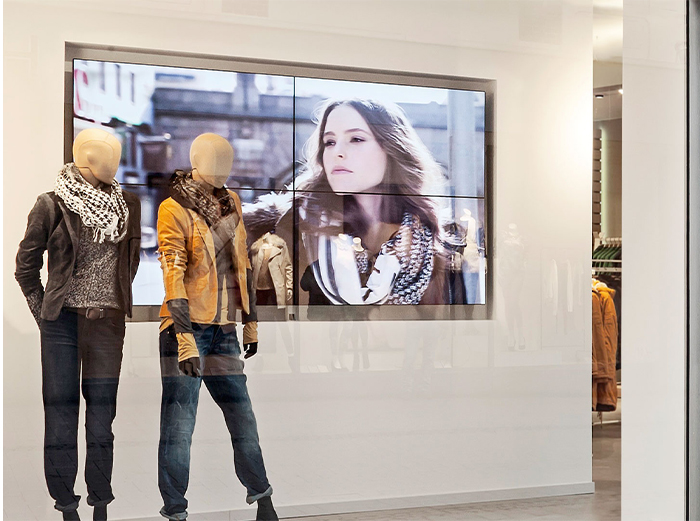

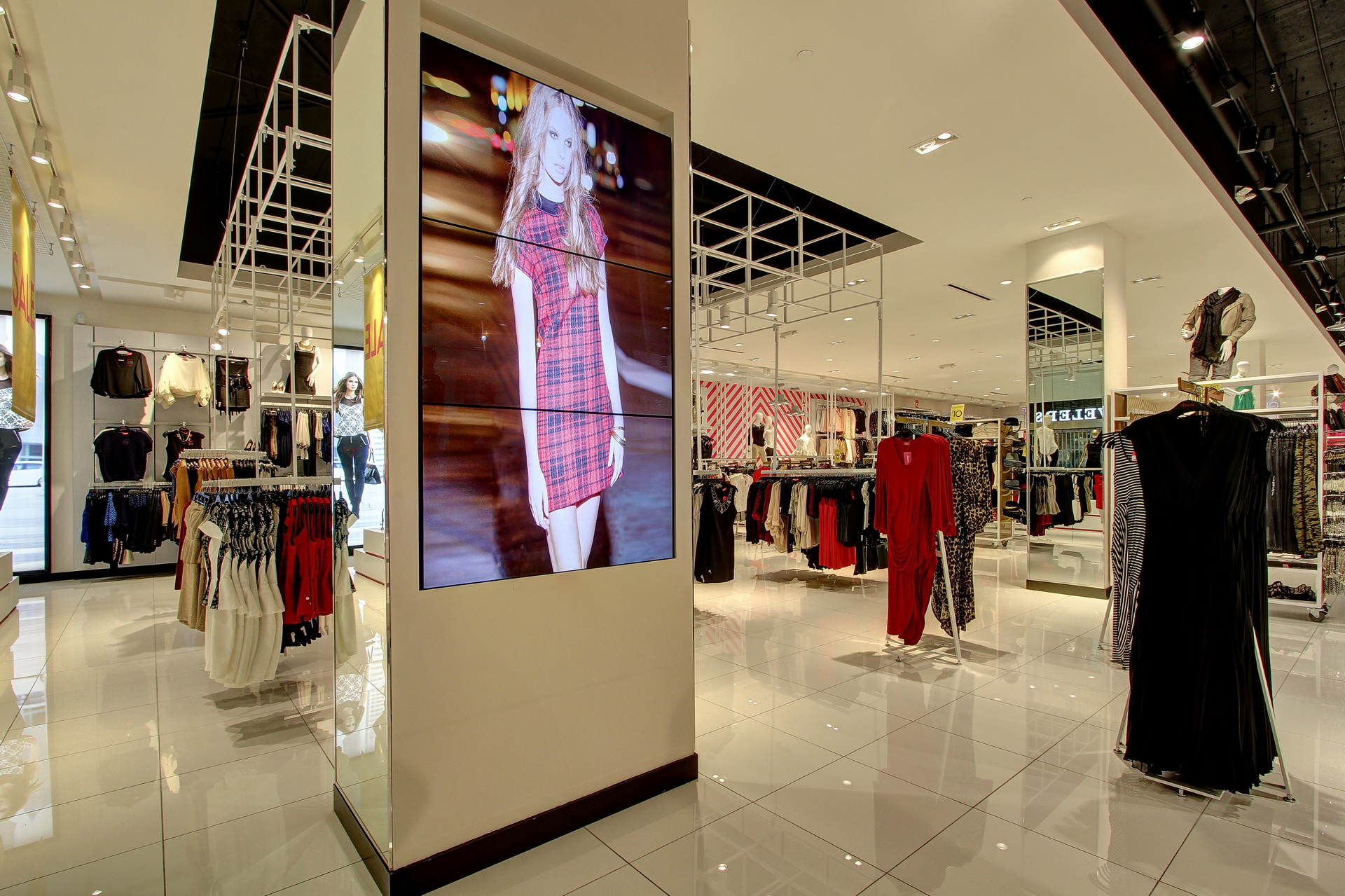

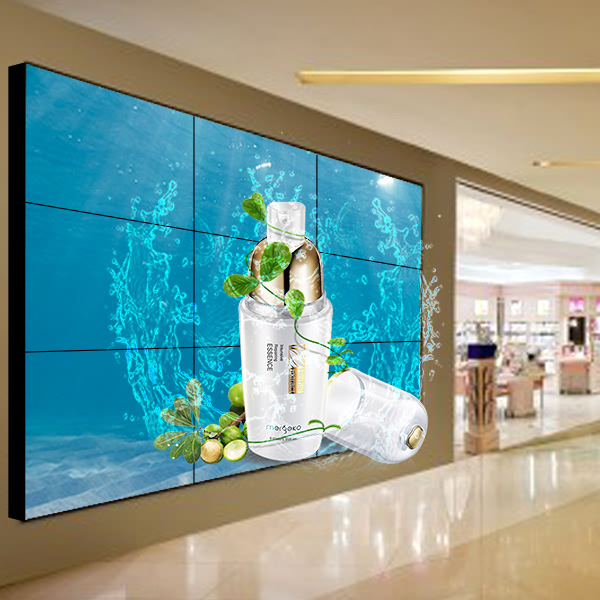

Audio- Visual center, Meeting rooms, Product Show room, Traffic control rooms, Retail store, Shopping malls, Mall directory, Store façade, Window displays, Product launch.
SPECIFICATIONS
| Model | VW 46 | VW 49 | VW 55 |
| Resolution | 1920x1080 | ||
| Bezel Size | 1.8mm/3.5mm | ||
| Active Area (HxW mm) | 1018.08x572.67 | 1074x604.2 | 1209.6x680.4 |
| Aspect Ratio | 169 | ||
| Brightness (nits) | 450/500/700/800 | ||
| Colour | 167M | ||
| Colour Temperature | 10000K | ||
| Viewing Angle | 178° | ||
| Contrast Ratio | 40001 | ||
| Back light Life | 50000hours | ||
| Video | HDMI, DVI, VGA, RGB/HV (BNC), Video1 IN (BNC), Video2 IN (BNC), Video1 OUT (BNC) | ||
| Audio | Audioin, Audioout | ||
| Power Consumption | 150 | 155 | 160 |
| Input Voltage | 100V - 240V(50/60Hz) | ||
| Power Management | VESA DPMS | ||
| Unit Size (L x W x H mm) | 1024x578x123 | 1077x607x120 | 1213x684x123 |
| Net Weight (Kg) | 22.15 | 22.4 | 28.8 |
| Gross Weight (Kg) | 28 | 28.5 | 35.5 |
| Package Size | 1300x700x200 | 1300x700x200 | 1500x750x200 |
| Working Temperature | 0-50° | ||
| Environmental Operating Humidity | 10-90% | ||
| Working Pressure | 800-1114 hPa (Altitude:0-2,000m) | ||
| Included | Remote control, AC Power Cable, User Manual, VGA/HDMI Cable, OSD Control Box | ||
