As per the project requirement, we are committed to provide a realistic immersive 4D experience. Using uniform point extraction technology, we are able to create a seamless screen. The audience is surrounded with screens and when clubbed with great stereo music, it leads to an high impact memorable experience.
Application Scenarios

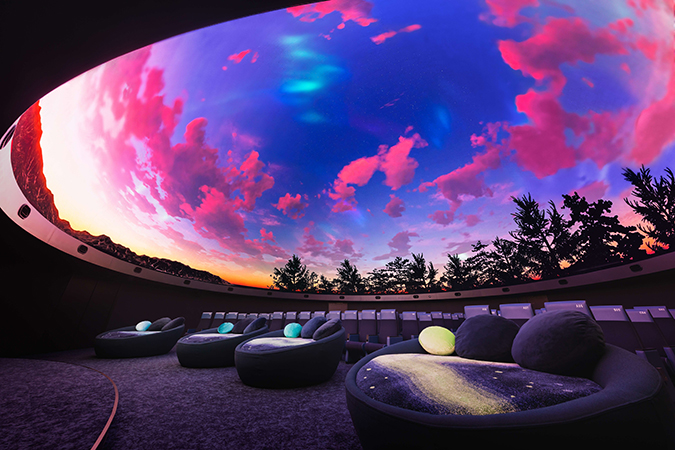

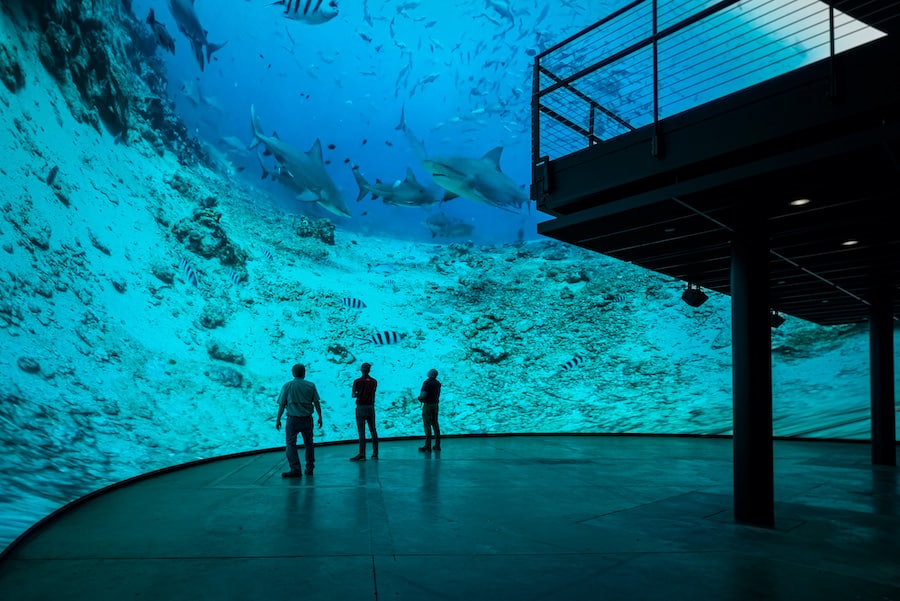

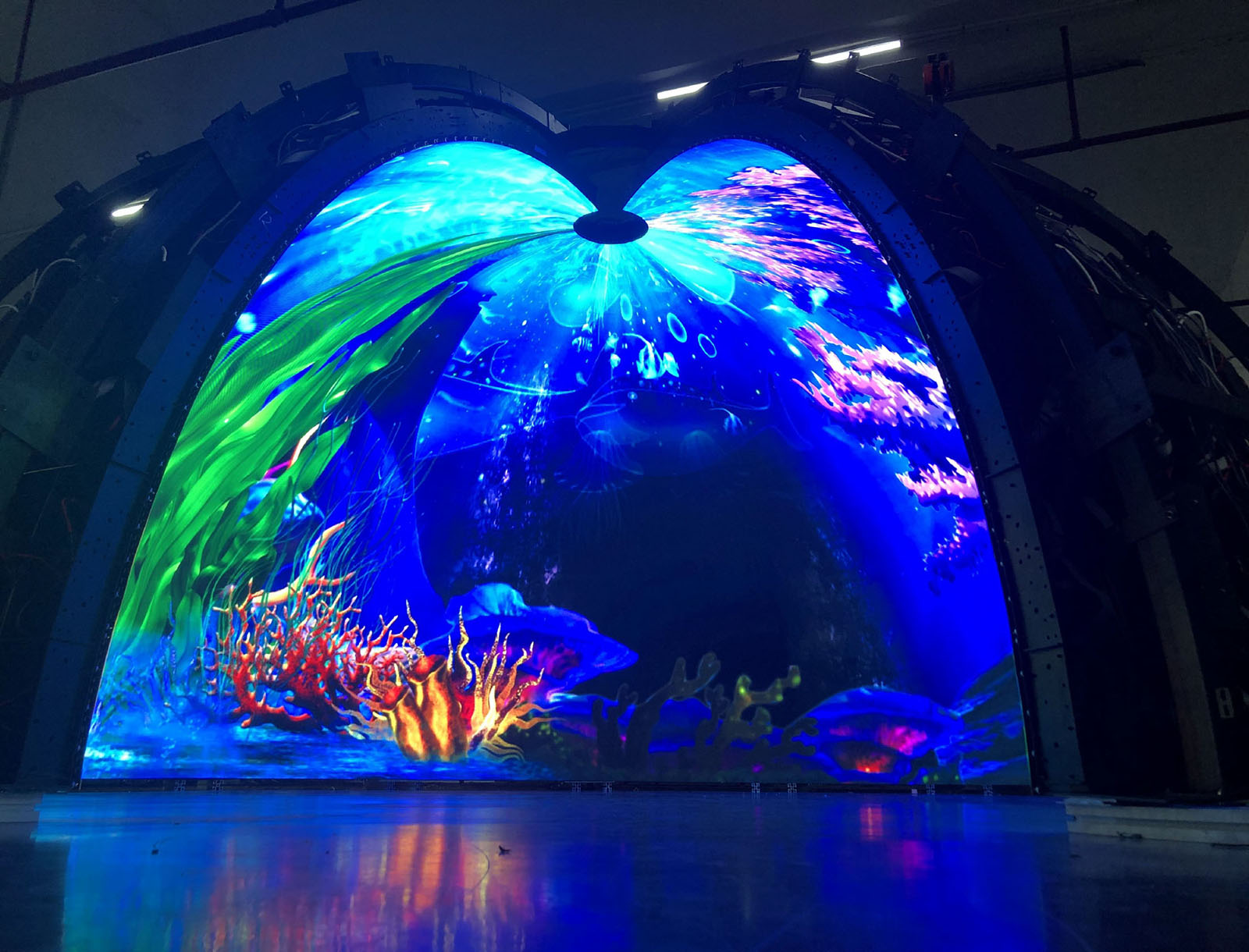

Science and Technology museums, Planetariums, Exhibition halls, Experience center, Large open-air places, Airport, Auditoriums, Theme base parks.
SPECIFICATIONS
| Model | IE 1.45 | IE 1.87 | IE 2 | IE 4 |
| Pixel Pitch(mm) | P1.45 | P1.87 | P2 | P4 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
| Pixel Density(dots/m2) | 4,75,624 | 2,84,444 | 2,50,000 | 62,500 |
| Scanning Method | 1/35 | 1/32 | 1/32 | 1/16 |
| Brightness (cd/m2) | 300 | 800-1000 | 800-1000 | 800 |
| Power Avg.(W/m2) | 140 | 150-200 | 150-200 | 150-200 |
| Power Max. (W/m2) | 300 | 600 | 600 | 600 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Gray Scale (bit) | 16 | 12-16 | 12-16 | 12-16 |
| Arc Center Angle | Custom radius and shape | |||
| Cabinet Weight (kg/pc) | 5 | 40 | 40 | 50 |
| Gross Weight(kg/m2) | 60 | |||
| Continuous Use Time | 72 (hrs) | |||
| Gray Scale (bit) | 12~16 | |||
| Input Voltage | AC100-240V/50-60Hz | |||
| Working Temperature | -20 C-60 C | |||
| Life Span | 100,000 hours | |||
| Mtbf | >100,000 hours | |||
| Certification | CE, ETL, FCC, ROHS | |||
