Our Ultrafine pitch products continue to bring clear, non- reflective, highly consistent and reliable display.
Product features
Application Scenarios

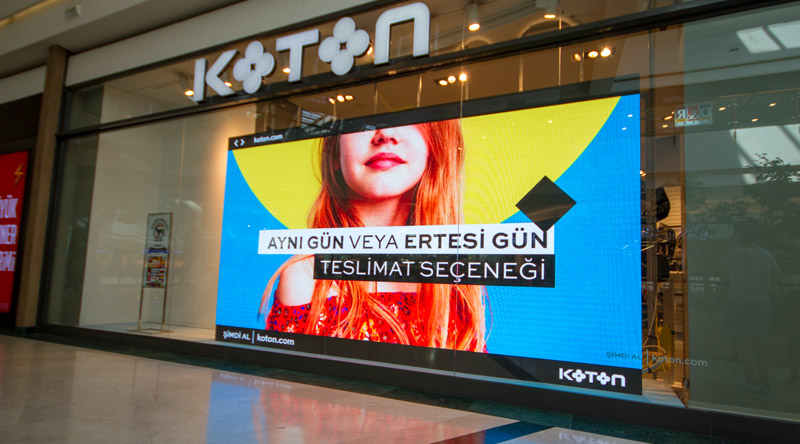

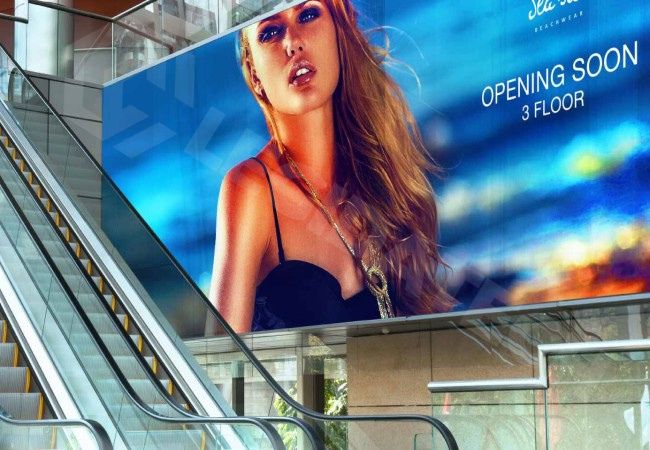

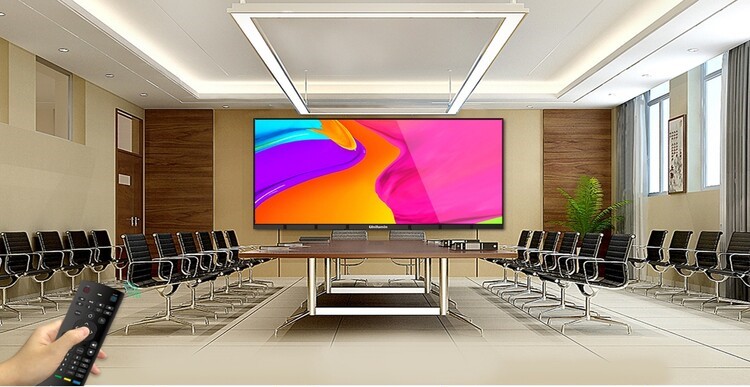

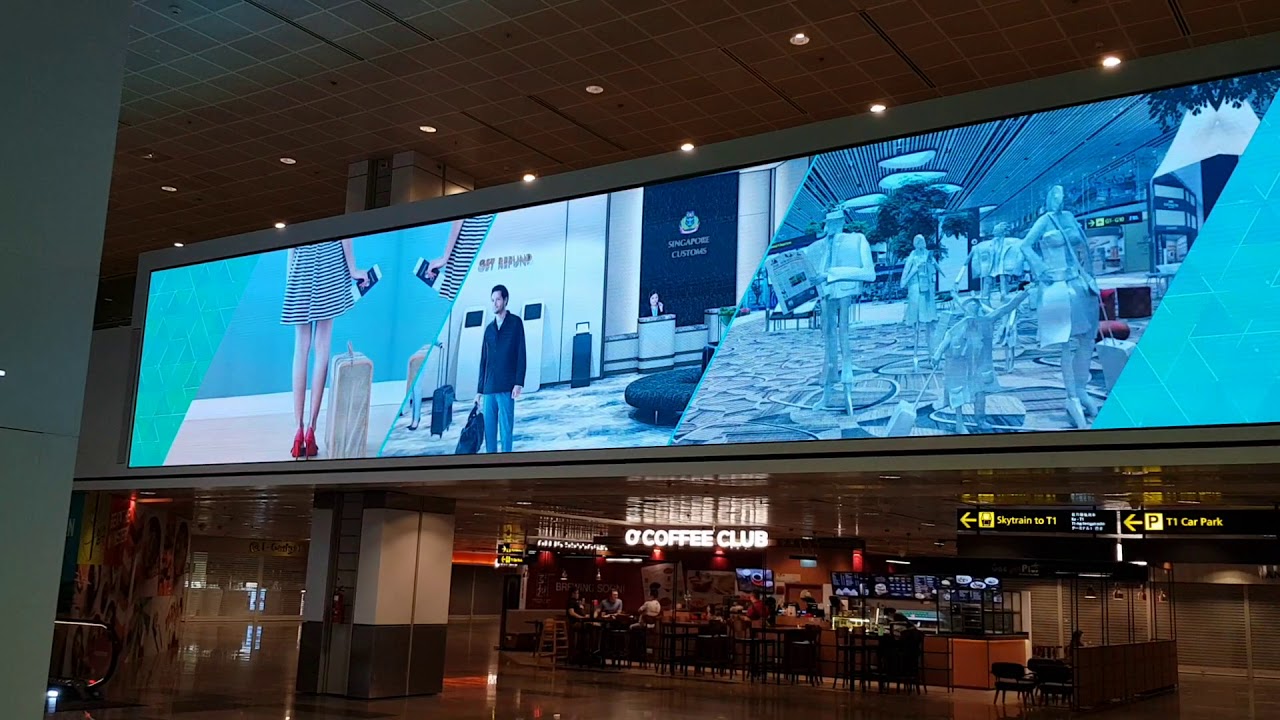

Monitoring center, conference room, Audio- Visual center, Product Show room, Exhibition hall, Brand Chain store, Commercial center, Broadcasting center, Cinema.
SPECIFICATIONS
| Model | FP 0.9 | FP 1.25 | FP 1.56 |
| Pixel Pitch(mm) | 0.93 | 1.25 | 1.56 |
| LED Configuration | 4in1 | 1R1G1B | 1R1G1B |
| LED Type | Mini LED | SMD1010 | SMD1010 |
| Pixel Density(dots/m3) | 11,37,777 | 6,40,000 | 4,09,600 |
| Cabinet Size(mm) | 600x337.5 | 600x337.5 | 600x337.5 |
| Cabinet Resolution (dots) | 640x360 | 480x270 | 384x216 |
| Module Size(mm) | 300x168.75 | 300x337.5 | 300x337.5 |
| Module Resolution(dots) | 320x180 | 240x270 | 192x216 |
| Cabinet Material | Die-casting aluminum | ||
| Cabinet Weight(kg) | 4.5 | 4.5 | 4.5 |
| Brightness(cd//m2) | 450 | 550 | 550 |
| Power Max/Avg (W/m2) | 650/220 | 500/150 | 500/150 |
| Refresh Rate (Hz) | 1920-3840 | ||
| Gray Scale (bit) | 12-16 | ||
| Input Voltage | AC100-240V/50-60Hz | ||
| Working Temperature | -20 C-60 C | ||
| Installation/Maintenance | Front/Rear | ||
| Life Span | 100,000 hours | ||
| Mtbf | >100,000 hours | ||
| Certification | CE, ETL, FCC, ROHS | ||
