Introducing cabinet- less LED display installation method, where we directly attach the modules (with magnets) to the metal structure. It is usually more suitable for Indoor LED screen usage. Slim and light weight design with high refresh rate and features like adjustable brightness makes it ideal for premium high-end applications.
Product features
Application Scenarios

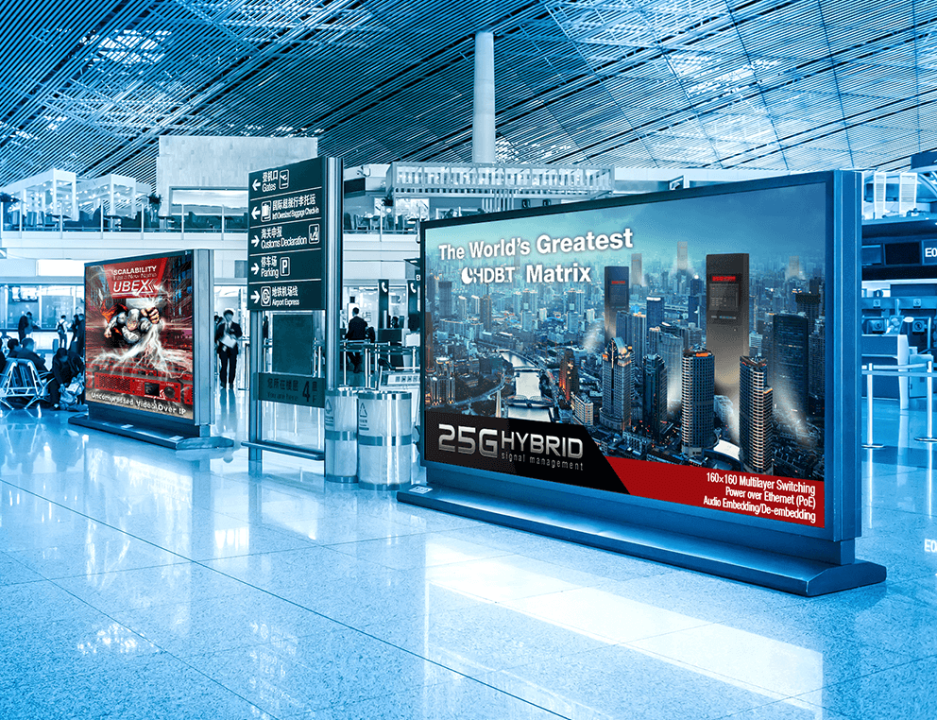

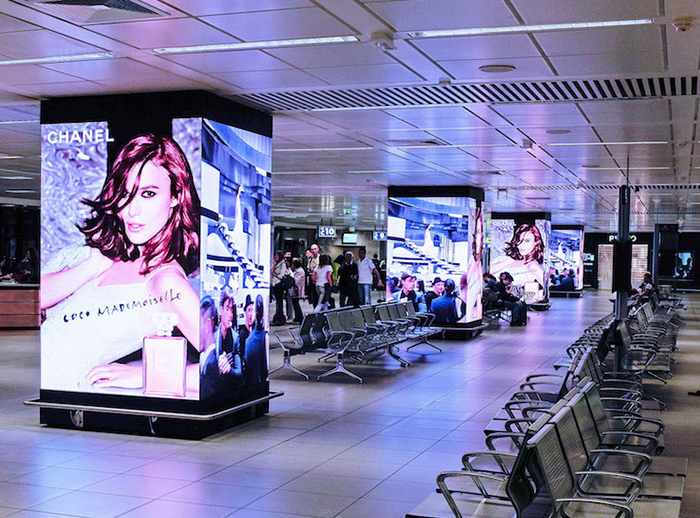

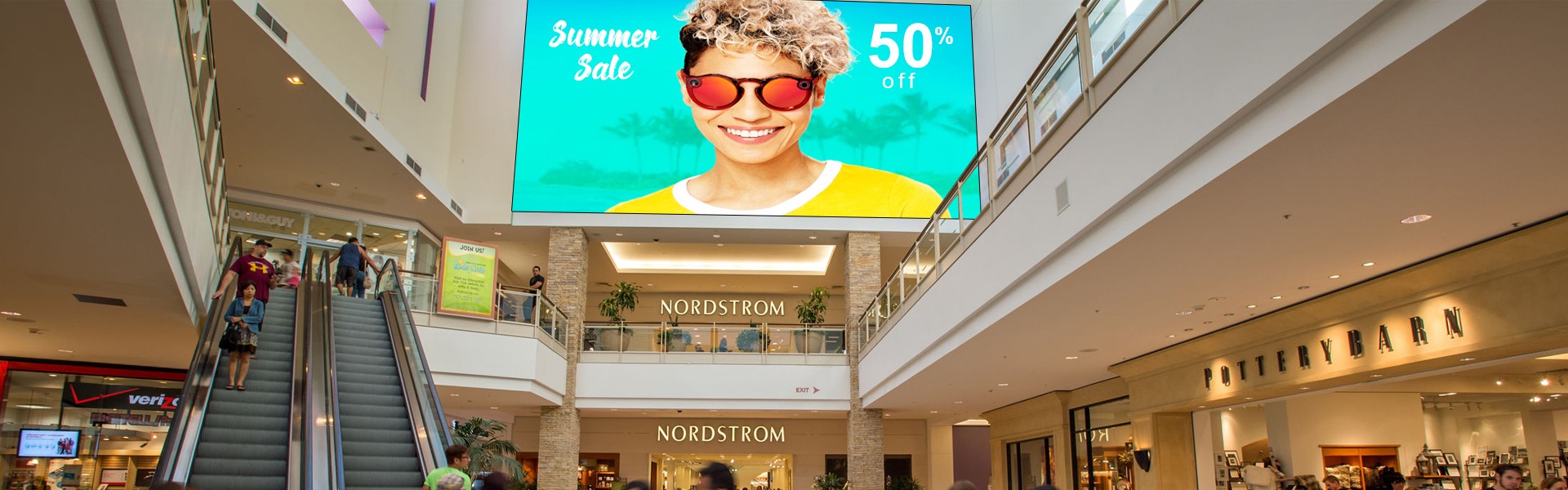

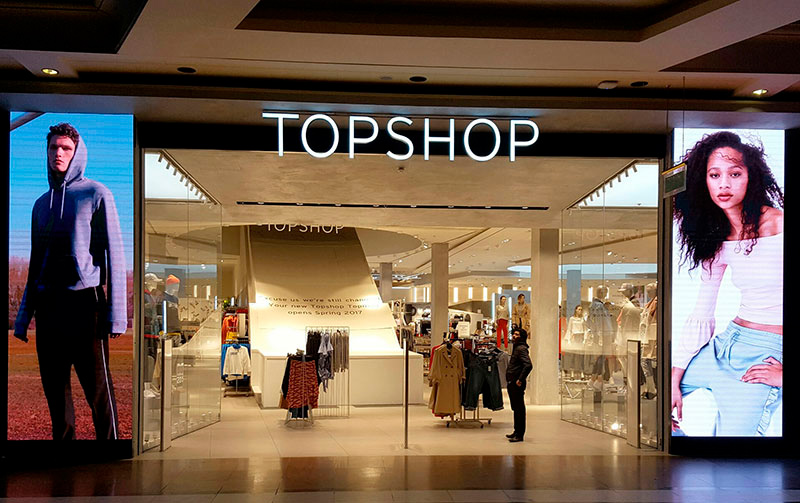

Audio- Visual center, Product Show room, Exhibition hall, Retail store, Shopping malls, Column cladding, Store entrance façade, Ceiling creative treatment.
SPECIFICATIONS
| Model | IS 1.538 mm | IS 1.839 | IS 2.5 |
| LED Type | SMD1212 | SMD1515 | SMD2121 |
| Pixel Pitch | 1.538mm | 1.839mm | 2.5mm |
| Module Resolution W × H | 208*104=21632 Pixels | 174×87=15138 Pixels | 128X64=8192 Pixels |
| HUB | HUB320 | HUB320 | HUB75 |
| Module Dimension | 320mm×160mm×16.6mm | 320mm×160mm×16.6mm | 320mm×160mm×16.6mm |
| Module Weight | 0.49±0.02kg | 0.46±0.02kg | 0.46±0.02kg |
| Single dot Brightness Calibration | Support | Support | Support |
| White Balance Brightness | 500 CD/m2 | 500 CD/m2 | 500 CD/m CD/m2 |
| Standard Color Temperature | 6500K (1000K～9500K Adjustable ) | 6500K (1000K～9500K Adjustable ) | 6500K (1000K～9500K Adjustable ) |
| Beam AngleHor/Ver°） | 140°/140° | 140°/140° | 140°/140° |
| Contrast Ratio | 5000 : 1 | 5000 : 1 | 3000 : 1 |
| Input Power <Max> | 488W/m2 | 488W/m2 | 488W/m2 |
| Input Power <Typical> | 163W/m2 | 163W/m2 | 163W/m2 |
| Frame Changing Frequency | 60Hz | 60Hz | 60Hz |
| Refresh Rate | 3840Hz | 3840Hz | 1920Hz |
| Processing Depth | 12~14 Bit | 12~14 Bit | 12~14 Bit |
| Video Support | 2K HD, 4K UHD | 2K HD, 4K UHD | 2K HD, 4K UHD |
| Life Typical Value (HRS) | 100000H | 100000H | 50000H |
